Product Range
Low Voltage series

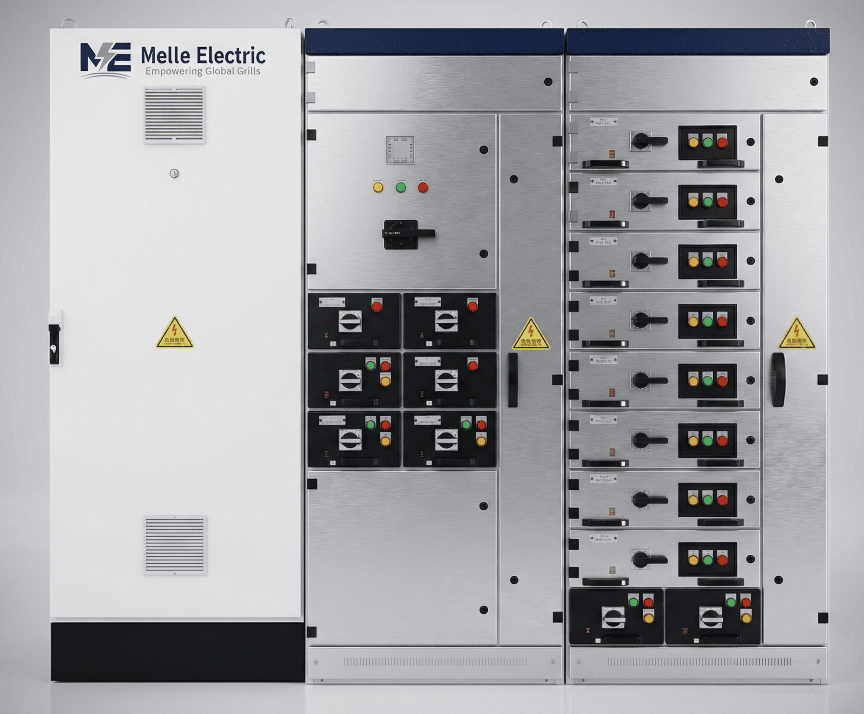

LV Motor Control Center
Designed for centralized motor control, our UL 845 certified MCCs provide robust protection and distribution for industrial processes. Featuring modular drawout units and custom configurations, they ensure high operational safety, easy maintenance, and seamless integration into automated systems.
Parameter：
- Rated Voltage & Phase – 208V, 240V, 480V, 600V(50/60HZ)
- Short Circuit Current Rating (SCCR / Bus Bracing) – 42kA, 65kA, 100kA
- Main Bus Ampacity – 600A, 800A, 1200A, 1600A, 2000A, 2500A, 3200A
- Enclosure Type – NEMA 1, 12, 3R
- Wiring Class & Type – Class I, Class II , Type B

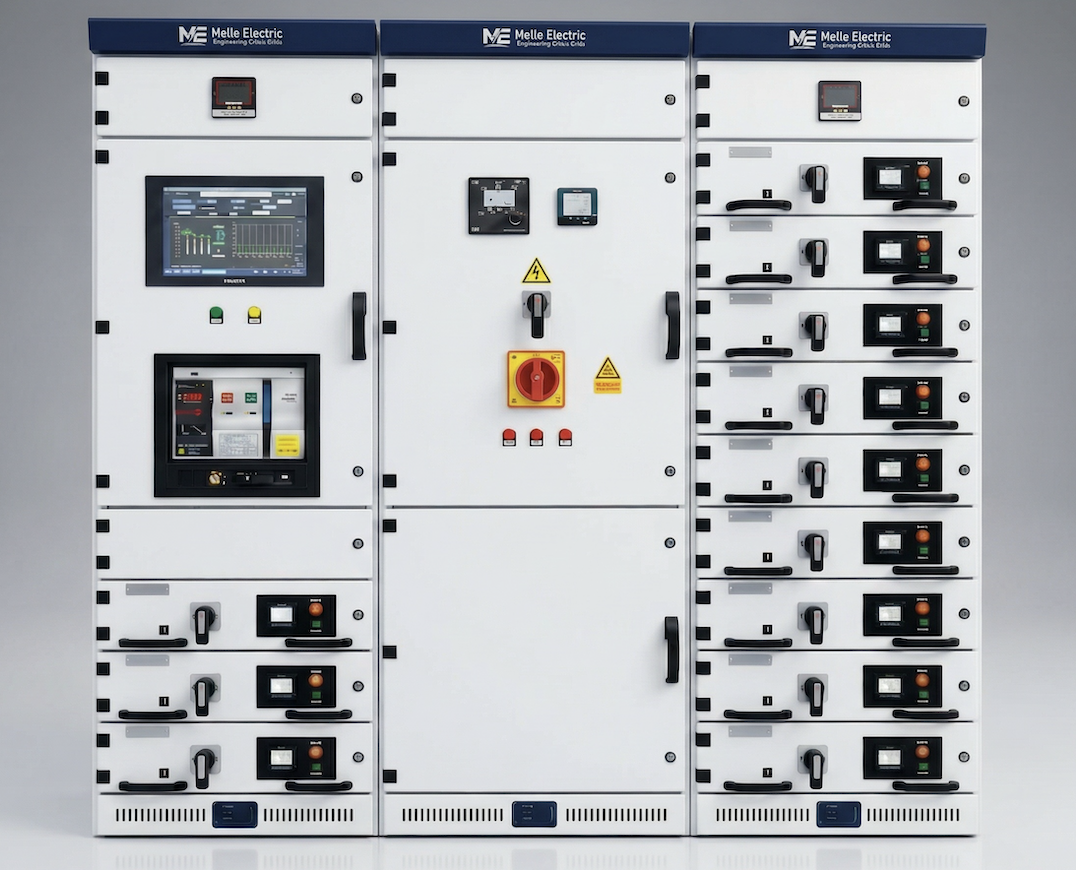

Low Voltage series
LV Switchgear
Engineered for high-capacity power distribution, our UL 1558 certified LVS provides superior circuit protection and reliability. Featuring fully withdrawable breakers and heavy-duty metal-clad construction, it is ideal for mission-critical facilities requiring maximum uptime, safety, and high short-circuit withstand capabilities.
Parameter：
- Rated Voltage – 480A, 600A (AC)
- Phase – 60Hz, 3-Phase, 3-Wire
- Short Circuit Current Rating (SCCR / Bus Bracing) – 65kA, 85kA, 100kA, 150kA (RMS Sym)
- Main Bus Ampacity – 2000A, 3200A, 4000A, 5000A
- Enclosure Type (NEMA Rating) – NEMA 1, 3R
- Circuit Breaker Type (LVPCB) – Drawout type UL1066
- Bus Bracing & Material – Tin-Plated Copper
Medium Voltage series

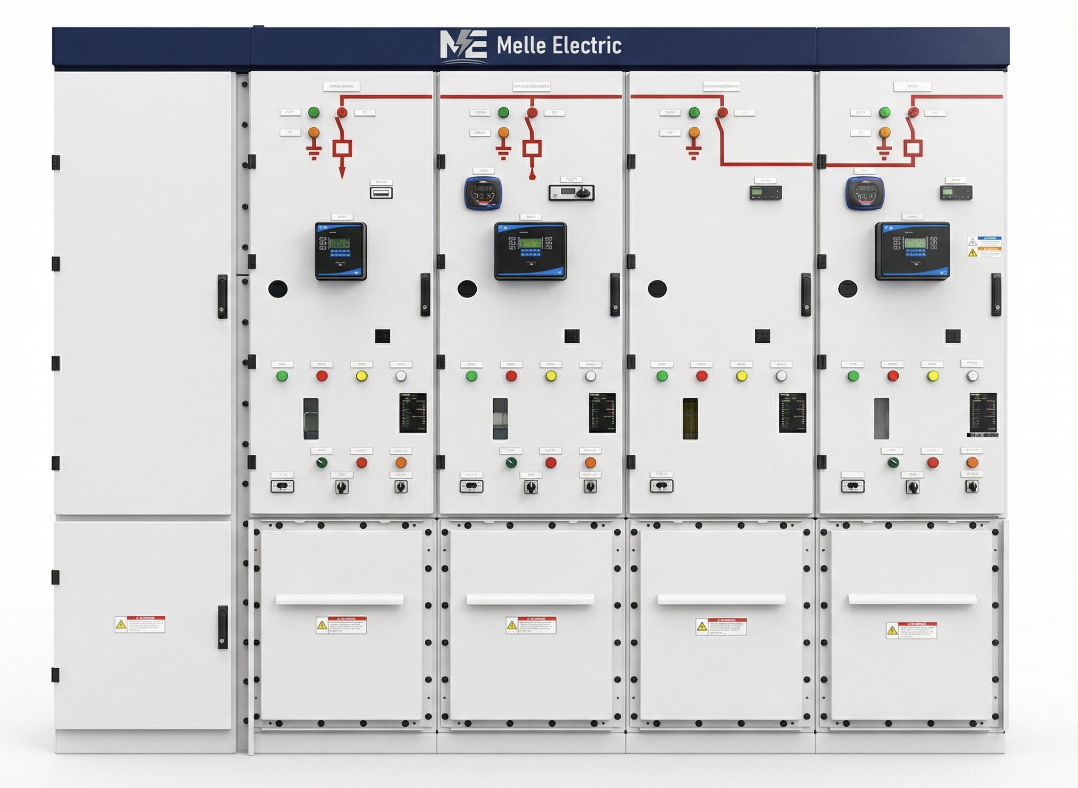

Gas-Insulated Switchgear(GIS)
Our UL/ETL certified GIS offers a compact, maintenance-free solution for medium-voltage distribution. Utilizing SF-6 or eco-friendly gas insulation, it excels in harsh or space-constrained environments. It provides superior reliability and safety with fully shielded, gas-tight compartments designed for long-term operational integrity.
Parameter:
- Rated Maximum Voltage – 5kV, 15kV, 27kV, 38kV
- Short-Circuit Interrupting Rating – 25kA, 31.5kA, 40kA
- Continuous Current Rating – 600A, 1200A, 2000A, 2500A
- Basic Insulation Level (BIL / Impulse Withstand) – 60kV, 95kV,125kV, 150kV
- Enclosure Gas Integrity & Monitoring – Annual Leakage Rate<0.1%
- Internal Arc Classification (IAC Rating) – 2B
Medium Voltage series

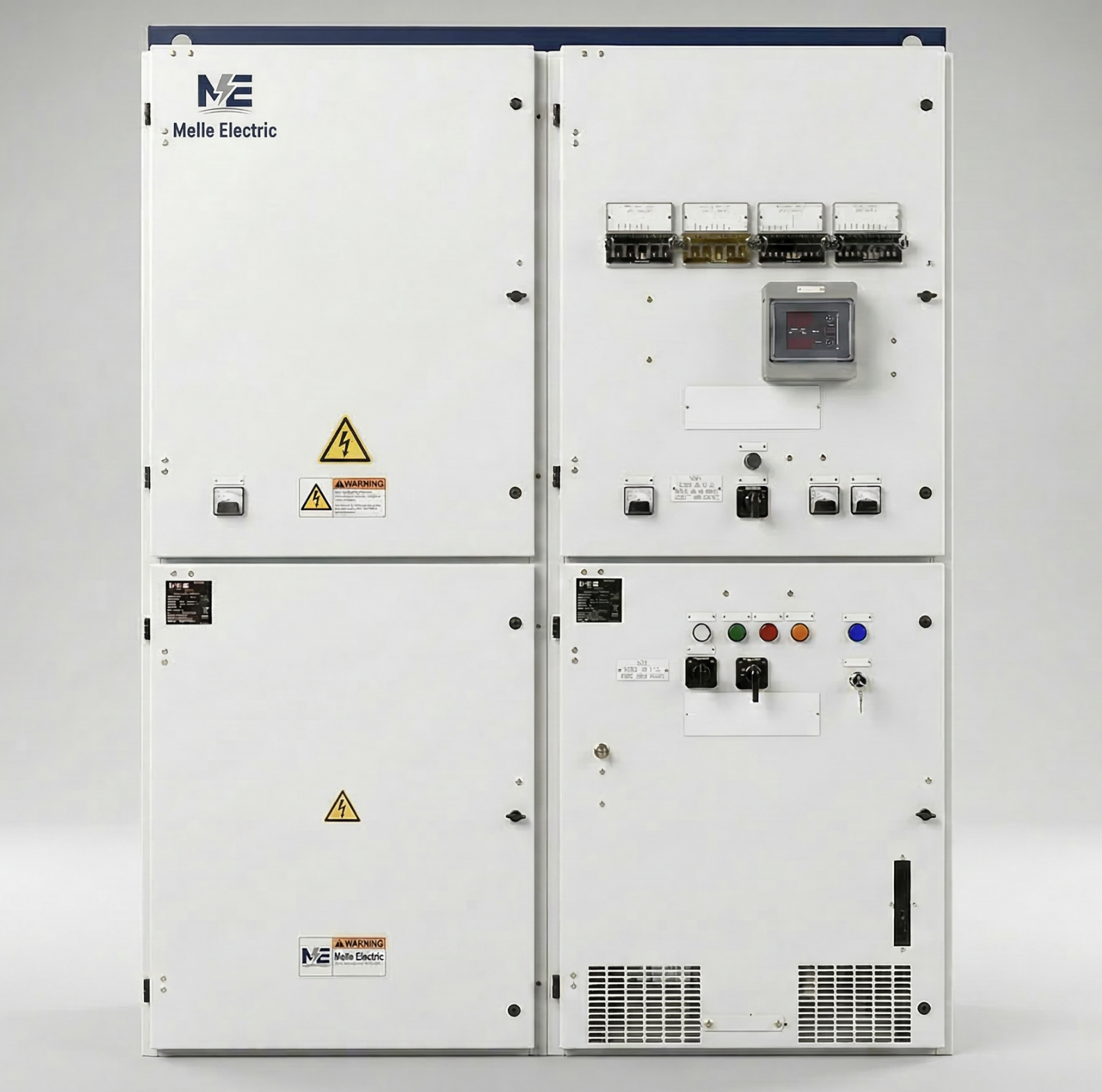

Metal-Clad Switchgear (MC)
Our IEEE C37.20.2 compliant Metal-Clad Switchgear features fully compartmentalized designs with grounded metal barriers for maximum safety. Equipped with drawout circuit breakers and insulated busbars, it offers superior protection for medium-voltage utility, industrial, and data center applications requiring high reliability.
Parameter:
- Rated Maximum Voltage – 5kV, 15kV, 27kV, 38kV
- Short-Circuit Withstand & Interrupting Rating – 25kA, 31.5kA, 40kA, 50kA (RMS Sym)
- Basic Insulation Level (BIL / Impulse Withstand) – 60kV, 95kV, 125kV, 150kV (BIL)
- Continuous Current Rating – 1200A, 2000A, 3000A, 4000A
- Compartmentalization & Barriers – Insulated Bus, Automatic Shutters
- Internal Arc Classification (IAC / Arc Resistant Rating) – IEEE C37.20.7 Type 2B
Medium Voltage series

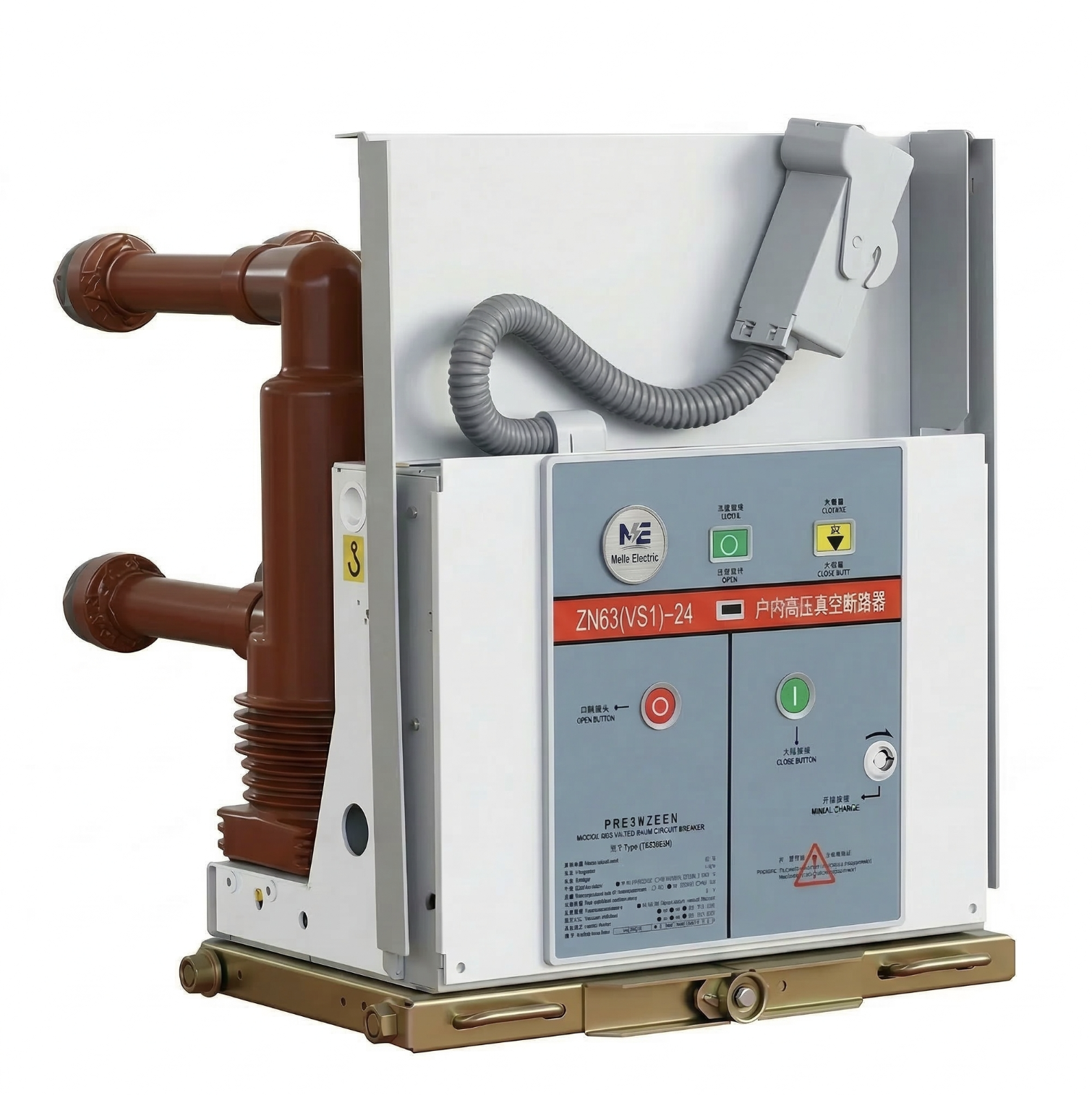

Drawout Circuit Breaker
MV Drawout Circuit Breaker
Engineered for seamless integration into Metal-Clad switchgear, our UL-certified medium-voltage drawout breakers feature a robust racking mechanism for safe, rapid isolation. With superior interrupting ratings and long electrical life, they provide reliable circuit protection and easy maintenance for critical industrial and utility grids.
Parameter:
- Rated Maximum Voltage – 4.76kV, 15kV, 27kV, 38kV
- Rated Short-Circuit Interrupting Current – 25kA, 31.5kA, 40kA, 50kA (RMS Sym)
- Continuous Current Rating – 600A, 1200A, 2000A, 3000A, 4000A
- Basic Insulation Level (Impulse Withstand) – 60kV, 95kV, 150kV (BIL)
- Closing and Latching Capability – 2.6 x Rated Short-Circuit Interrupting Current (60Hz)
- Rated Interrupting Time – 3-cycle (60Hz)
Transformer

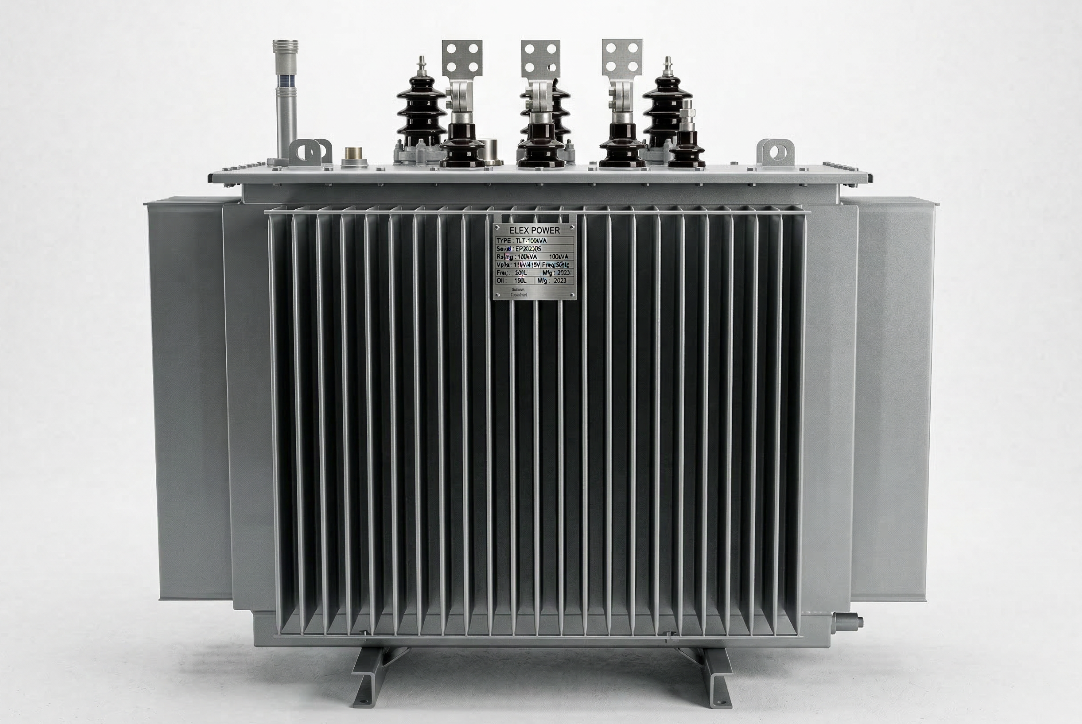

Three-Phase Liquid-Filled Transformer
Our UL/ETL certified liquid-filled transformers are engineered for high-efficiency power distribution in commercial, industrial, and utility applications. Available in Pad-Mounted or Substation configurations, they utilize mineral oil or biodegradable fluids (FR3) to provide superior cooling and insulation, ensuring long-term reliability and high overload capacity for demanding grids.
Parameter:
- KVA Rating – 45kVA~10,000kVa
- Configuration & Mounting – Pad-Mounted/Substation
- Primary Voltage – 12.47kV, 13.2kV, 13.8kV, 24.9kV, 34.5kV
- Secondary Voltage – 480Y/277V, 208Y/120V, 2400V, 4160V
- Basic Insulation Level (BIL) – 95kV, 110kV, 150kV, 200kV
- Insulating Liquid – Mineral Oil/Natural Ester
- Temperature Rise – 55/65°C
Transformer

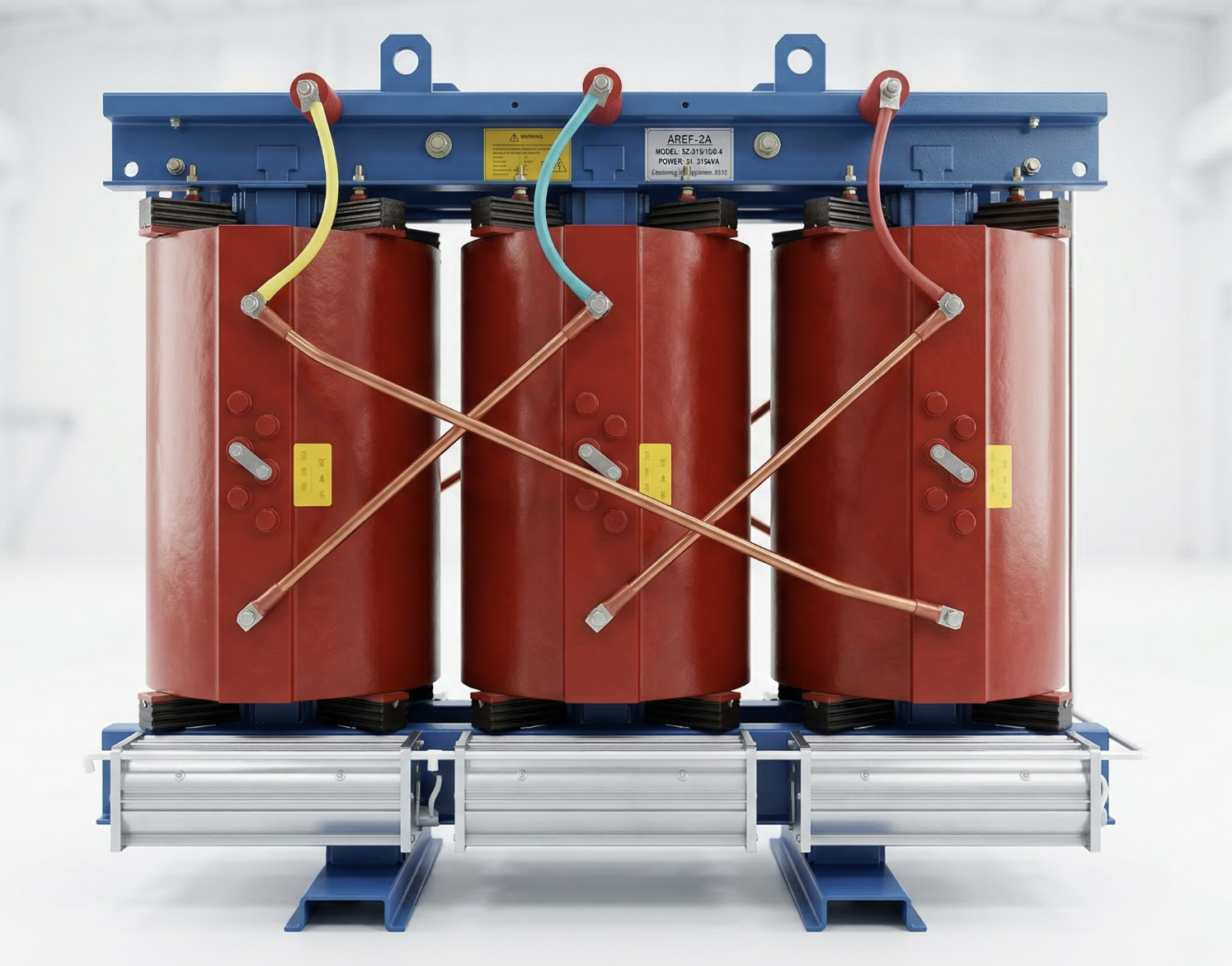

Three-Phase Dry-Type Transformer
Our UL 1561 certified dry-type transformers provide a safe, fire-resistant solution for indoor and moisture-prone environments. Utilizing VPI or Cast Resin technology, these units require minimal maintenance and eliminate the risk of oil leaks, making them ideal for hospitals, data centers, and high-rise commercial buildings.
Parameter:
- KVA Rating – 15-5000kVA
- Primary Voltage Ratings – 5kV, 15k, 480V, 600V
- Secondary Voltage Ratings – 480/277V, 208/120V(Wye)
- Insulation Class – 220°C（Class R）
- Standard Temperature Rise -80°C, 115°C, 150°C
- Basic Insulation Level (BIL / Impulse Rating) – 60kV, 95kV
- Enclosure Type – NEMA 1, 3R, 4X
- Winding Material – Aluminum/Copper
Transformer
Pole-Mounted Transformer
Designed for utility distribution and rural electrification, our UL-certified pole-mounted transformers provide a compact, reliable solution for stepping down medium voltage. Available in Single-Phase or Three-Phase banks, these units feature robust, weather-resistant tanks and high-creepage bushings, ensuring durable performance and easy installation on overhead power lines.
Parameter:
- KVA Rating – 10, 15, 25, 37.5, 50, 75, 100, 167kVA
- Voltage Ratings & Taps(Primary) – 7.2kV, 7.62kV, 12.47kV, 13.2kV, 14.4kV, 19.9kV, 34.5kV
- Basic Insulation Level (BIL) – 95kV, 110kV, 12kV, 150kV
- Accessories & Protection – CSP (Completely Self-Protected), Pressure Relief Device
